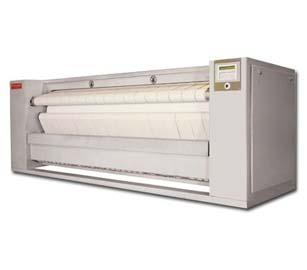

Technical Specifications:
Cylinder Length:
2000 mm
Cylinder Diameter:
600 mm Ø
Heating System:
Electric heating (24 kW) or steam heating ( one must be chosen)
Motor:
0,37 kW
Dimensions:
Width 2800 x Depth 1000 x Height 1350 mm
Weight:
1040 Kg
Working System:
Two way spinning / Adjustable speed control
Functions and Advantages:
- Heatproof NOMEX feeder, dryer and ironing belts
- Corrosion proof, epoxy dyed main cylinder
- Forwards – backwards, one way or two ways working alternatives
- Heat control by thermostat in electrically heated models
- Speed controlling in steam operated models ( slow – fast )
- Finger protect safety feature on all over the cylinder.
- Garments input – output pool
- All driving and electrical components are in protected cases
- Manuel speed and temperature control ( PLC control is optional )
- Complete single cylinder with turbine is available.
- Equipped with temperature regulator to disconnect the steam
- Equipped with digital termometer
- Equipped with all safety measures
- Cylinder is coated with 18/10 stainless steel and with automatic cooling
- Required steam pressure 4-6 bar
- Steam consumption 70 kg/h
- Min.Speed (m/min.) 2m/min.
- Max.Speed (m/min.)10 m/min.
